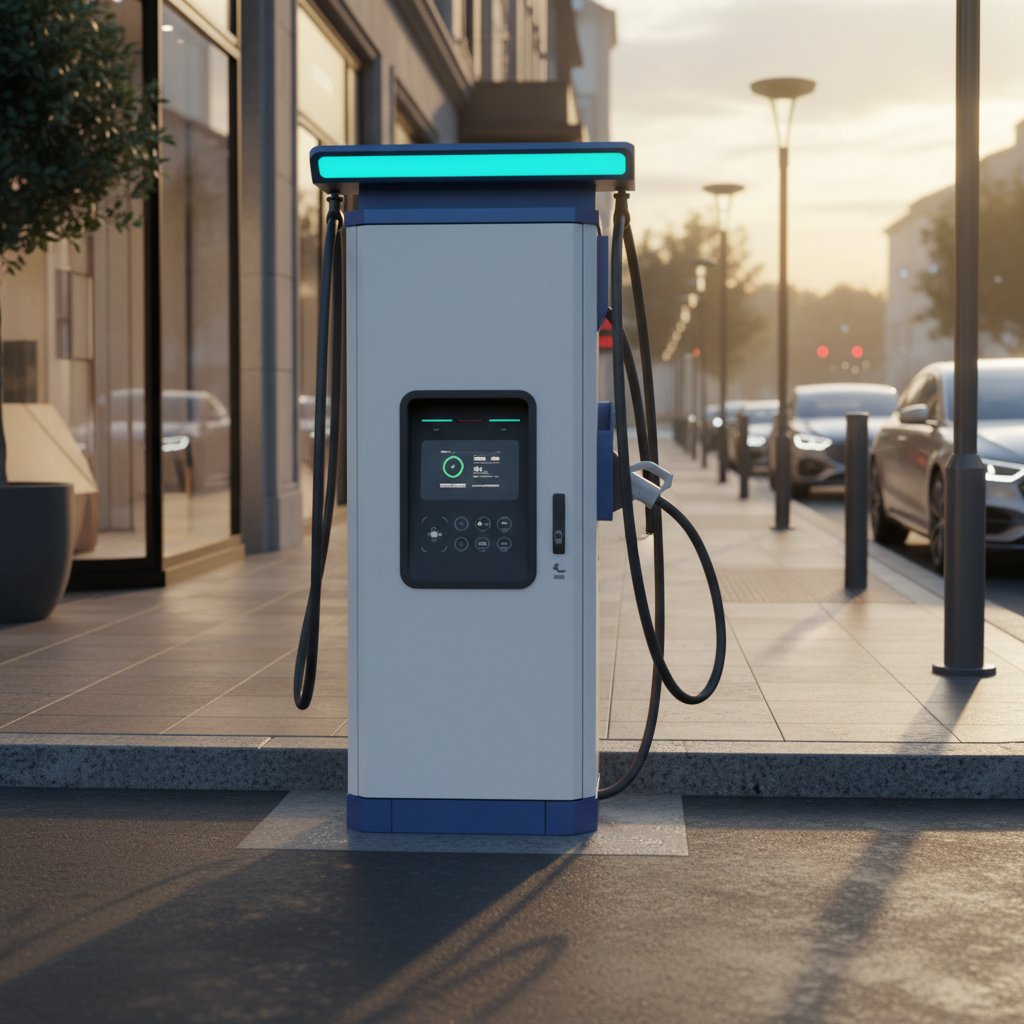

InfyPower Fast DC 180kW

CCS2 / CHAdeMO / GB/T global EV-charging standard support

Intelligent Power Switch Matrix that balances each power module’s output between the two connectors

CE, RED, CB, and OCA certifications for full international compliance

OCPP 1.6J supported, with firmware upgrade option to OCPP 2.0x, including Plug & Charge (P&C), smart charging, and power-management support

Optional cable retractor for easy and safe cable handling

IP55 & IK10 protection, built to operate in –30°C to +50°C with full-power charging in harsh environments

Complete safety system: output contactor & fuse, EPO, SPD, MCB, leakage-protection switch, and insulation-detector protection

Optional Coolring™ function enabling power transfer between two chargers, delivering up to 240 kW or 320 kW to a single connector

User-friendly interface: 7” TFT capacitive touch screen with tempered-glass protection and three RGB LED indicators

Web-based maintenance backend for enhanced operations and service effectiveness

Innovative U-shaped air-duct design maintains only 60 dB noise even at full load and high temperature

LAN & LTE wireless connectivity, OTA firmware updates, RFID authorization, POS payments, and mobile-app payment support
